Manufacturer:Invensys Triconex
Model:3700A
Type:TMR, AI
Number of Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< .15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB

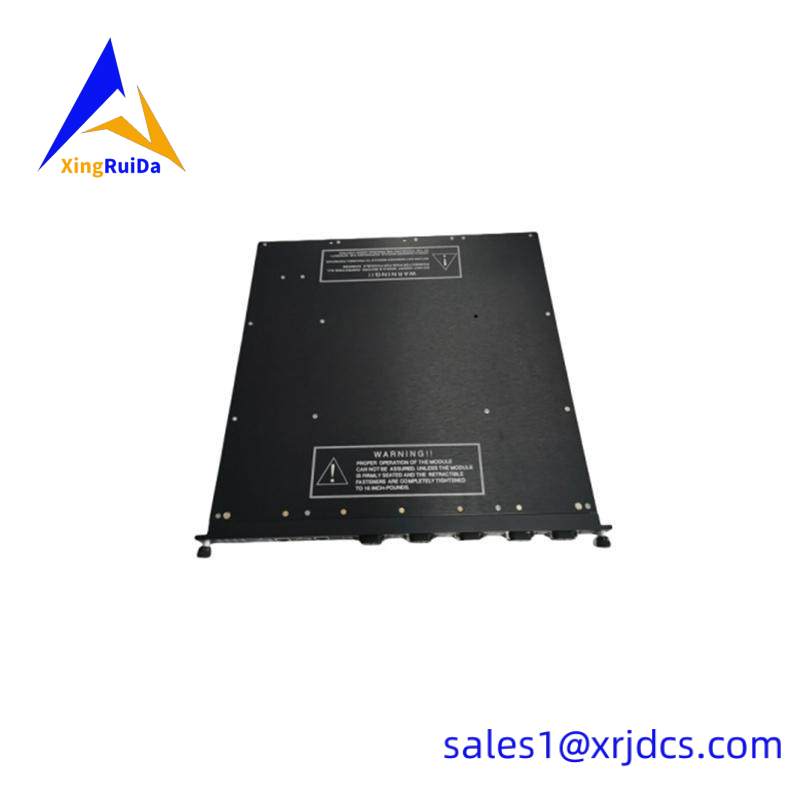

The Invensys Triconex 3700A Analog Input Module is engineered for robust performance in demanding industrial environments, ensuring reliable signal processing under harsh conditions.
With its advanced TMR technology, this module guarantees high accuracy and fast response times, making it ideal for real-time control systems where precision and reliability are paramount.
Featuring a wide dynamic range and exceptional noise immunity, the 3700A is capable of handling a variety of input signals without degradation, thus ensuring consistent and accurate data acquisition.
This module offers an intuitive design that simplifies integration into existing control systems, reducing setup time and minimizing the risk of errors during installation.
Built with high-quality materials and rigorous quality control, the Invensys Triconex 3700A ensures long-lasting performance and minimal maintenance requirements, providing cost-effective operation over extended periods.
